TECHNICAL INFORMATION
The Swift Leveller Range
The Swift Leveller Range is made up of four different items. The Mini, Standard, X-Large and the Adjustable. Each Swift Leveller is designed to be used on different surfaces, and to combat different voids. The weight-bearing capacity of each Swift Leveller varies. The Swift Leveller range is cleverly designed to allow them to be used together. This combats issues in installation where you have mixed surfaces, such as a corner of a garden shed overhanging a patio. It also resolves the common problem of trying to install on level ground, reducing the need for digging as a means of ground levelling as the Swift Leveller allows for a void drop of up to 500mm, which can be crucial for optimising ground usage.
Key Technical Features
Light, portable units
No specialist installation equipment needed
U Brackets attached to the product as standard
and not an additional cost
Can be reused depending on the original installation
Made from the highest quality steel
Environmentally friendly & corrosion-resistant coating
Designed, tested and manufactured in the UK
& Vigorously strength tested
ISO Quality – 9001 & Environmental -14001
Can be installed quickly & easily
Reduces the inconvenience of extensive digging
Combats void of up to
500mm
Weight-bearing up to 4000kg
SWIFT LEVELLER
Suitable for installation on concrete
or tarmac
Eradicates common problems associated with installing a shed
Compatible with the Swift Leveller range
Void 50 – 70mm
Max loading 1800kg

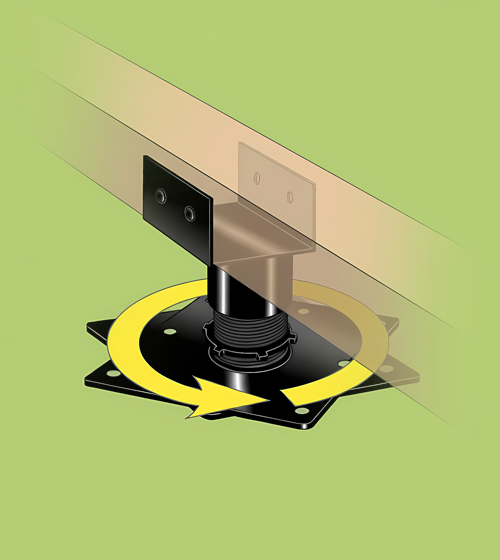

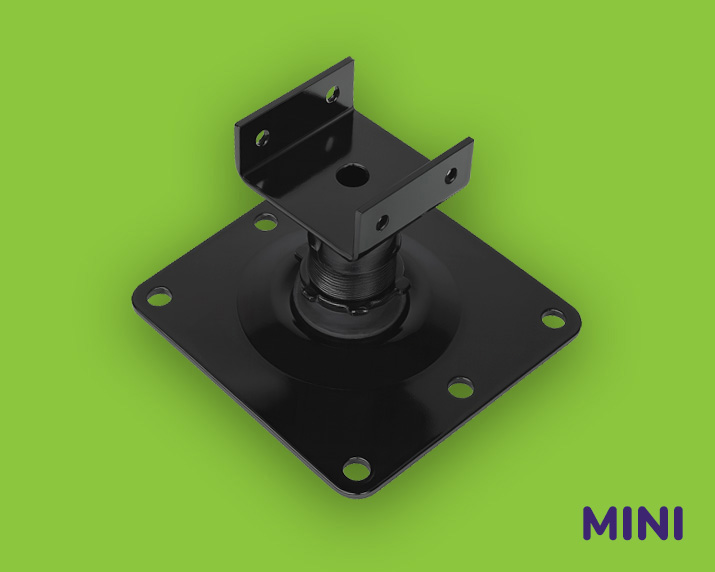

SWIFT LEVELLER MINI
Suitable for installation on grass, soil or hardcore surfaces
Ideal for a standard
garden shed
Compatible with the Swift Leveller range
Void 35 – 175mm
Max loading 2500kg

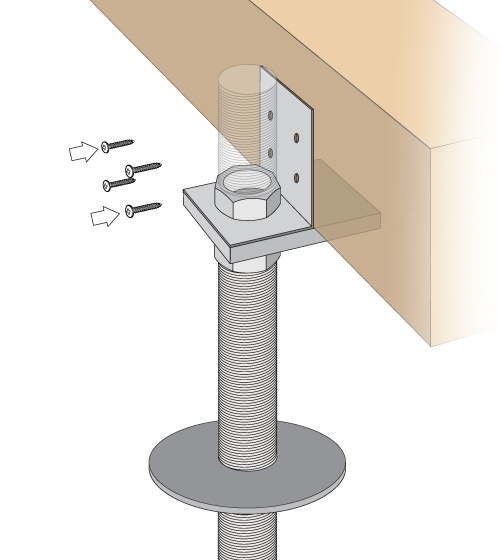

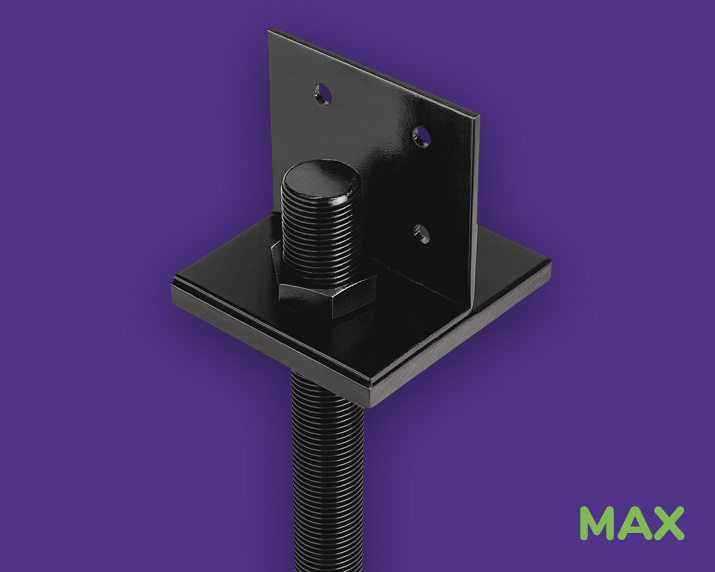

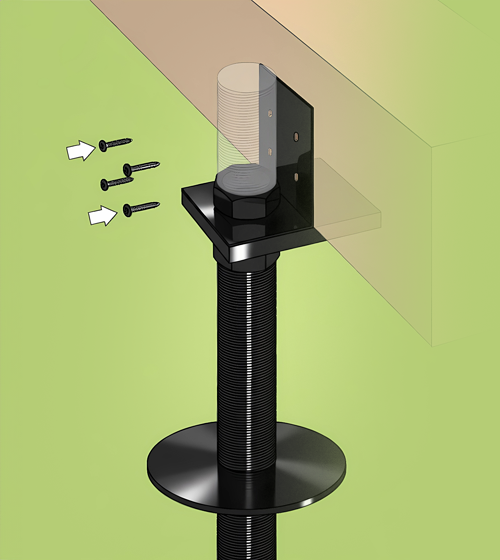

SWIFT LEVELLER MAX
Suitable for installation on a range
of surfaces
Concreted into position for a
stronger finish
Compatible with the Swift Leveller range
Void 50 – 350mm
Max loading 4000kg

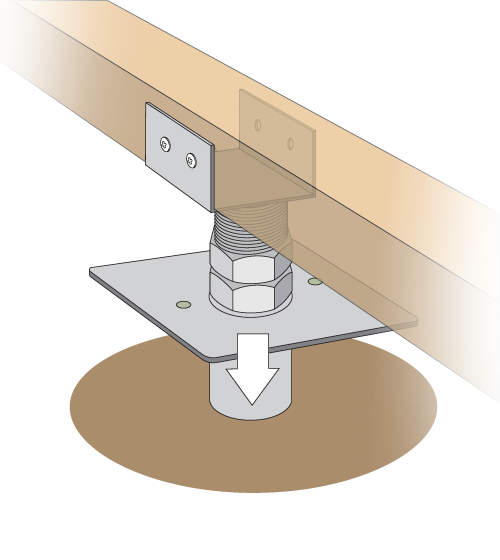

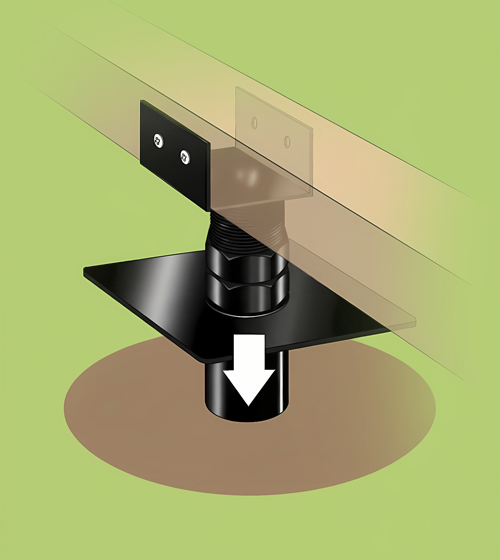

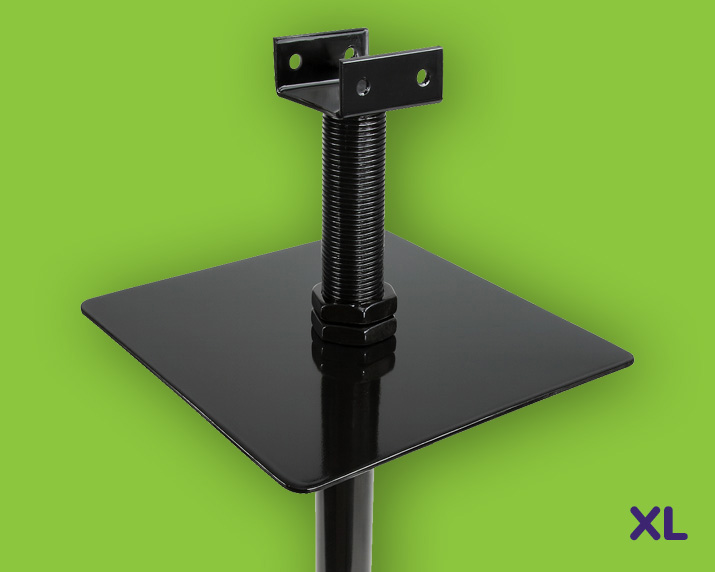

SWIFT LEVELLER XL
Suitable for installation on difficult and un-level ground
Concreted into position for a
stronger finish
Compatible with the Swift Leveller range
Void 35 – 500mm
Max loading 1000kg
Which is the best Swift Leveller for my installation?
There are four different products in the Swift Leveller range, all with the same aim – to give your outdoor building a level and secure foundation, including sufficient air circulation. The four Swift Levellers in the range are the Mini, Standard, X-Large, and the Adjustable. The range is designed for a simple and easy installation, reducing the need for digging out foundations and saving both time and money. The range is fully integrated, so you can use a combination of different Swift Levellers to allow for different surfaces, void depths and to combat challenging installations. To explore each Swift Leveller in more detail, simply click on the product links: Mini, Standard, X-Large and Adjustable.
Next Steps
If you are installing a shed in your garden, why not take a look at our product video and technical information pages? Here you will find out exactly how to use and install the Swift Leveller for your garden shed. If you make garden sheds, install outdoor buildings, such as home offices, or sell into the DIY market, then head over to our trade page to see how working with the Swift Leveller brand could help your business.
