USER GUIDEfor Great Scope & Flexibility
- This Product is great for harder-to-reach spots or high void levelling
- Adjustable on-site for accuracy
- Must be concreted for secure, long-lasting support
The Swift Leveller does exactly what it says – it provides an easy and simple way to level your outdoor building, such as a storage shed, home office, or garden room. The Max Swift Leveller Max is the one in the Swift Leveller range that will give you the greatest scope and flexibility for installation. The void range on the Swift Leveller Max allows you to install an outdoor building even on tricky or hard-to-access ground, without needing extensive groundwork, which can be expensive and disruptive. It integrates with the rest of the Swift Leveller range to provide a secure framework for your outdoor building.
If you are manufacturing, or installing outdoor buildings for customers, you will know the importance of providing your customers with good service and high-quality finished products. Using our precision-engineered Swift Leveller will help to achieve this. Designed and manufactured in Britain, the Swift Leveller is certified to ISO Certification Quality – 9001 and Environmental – 14001. It is protected with an environmentally friendly coating and is an economical foundation solution. If you are a supplier, installer or manufacturer of outdoor buildings then the Swift Leveller is for you.

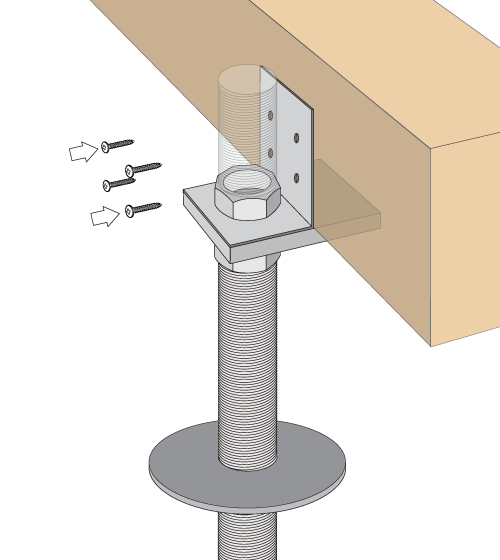

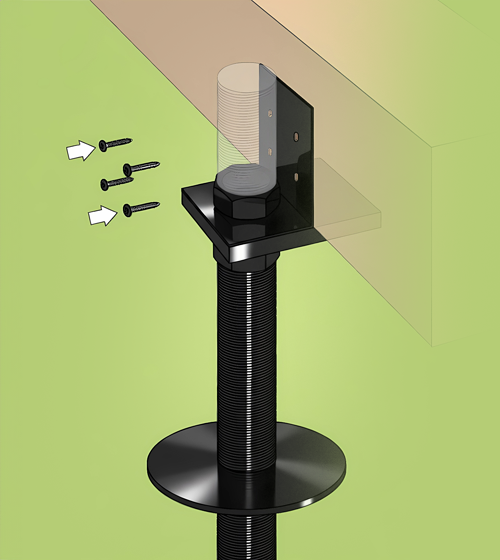

Screw the top L bracket of the Swift levelling device to the frame at equal intervals. Complete this for the whole frame.

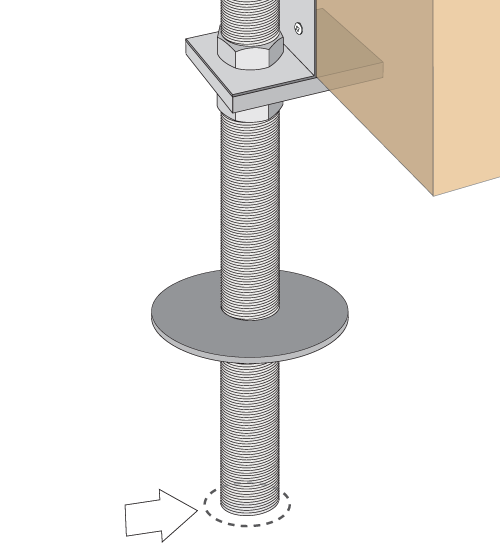

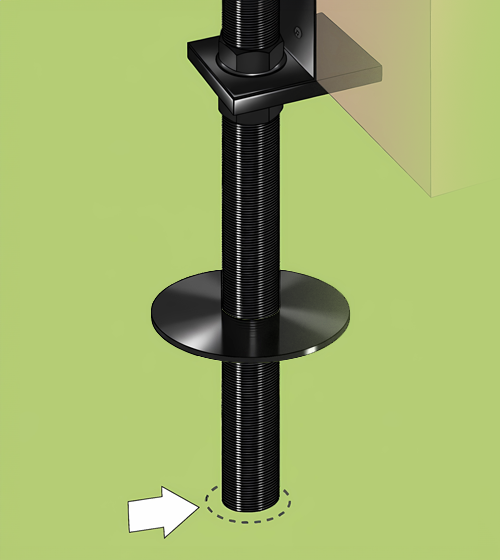

Mark the floor and identify where the holes need to be dug for the Swift levelling device.Remove the base from the area.

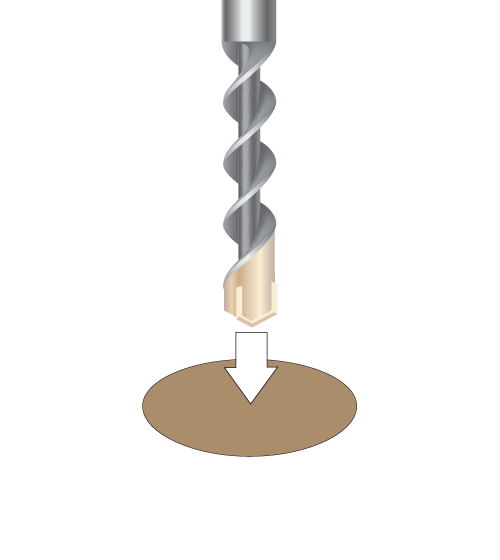

Dig holes into the ground to a depth of at least 250mm.

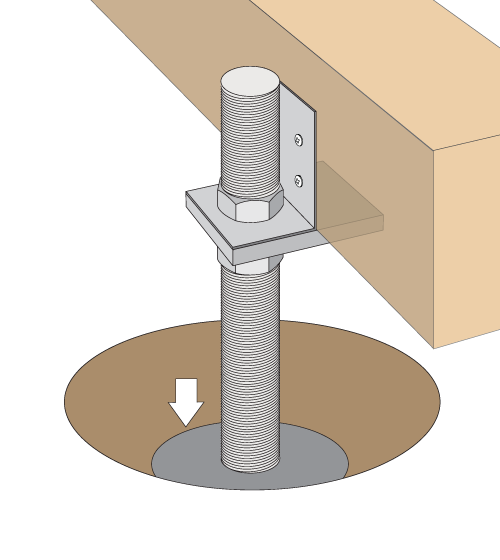

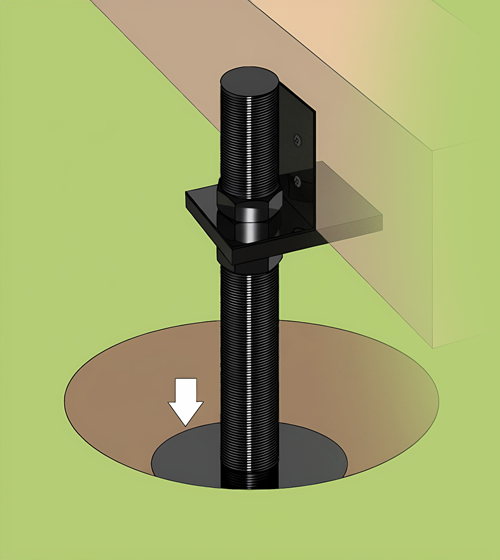

Position the frame over the dug holes and drop into place. The round plate is used forsupport at the bottom of the hole.

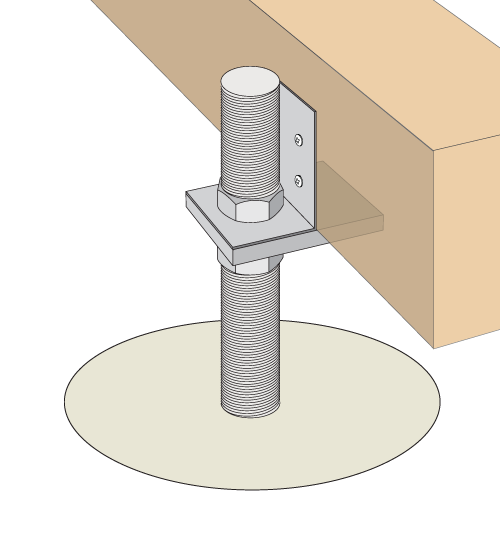

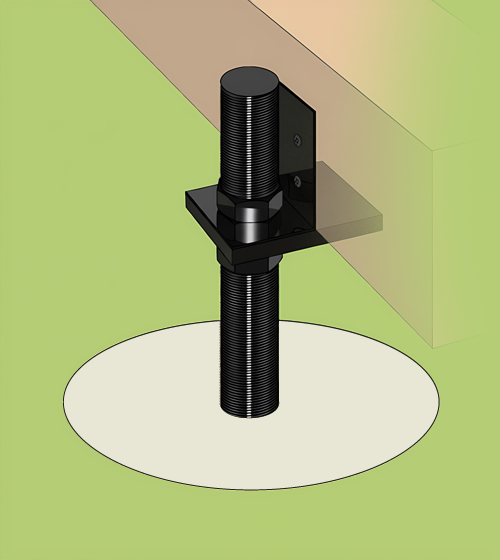

Ensure bases are straight and level and set in place with concrete.

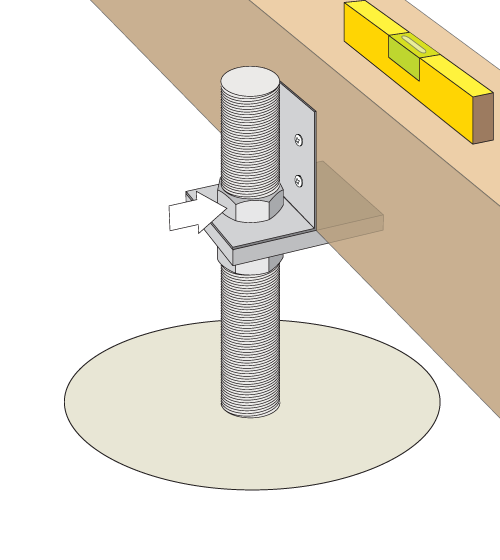

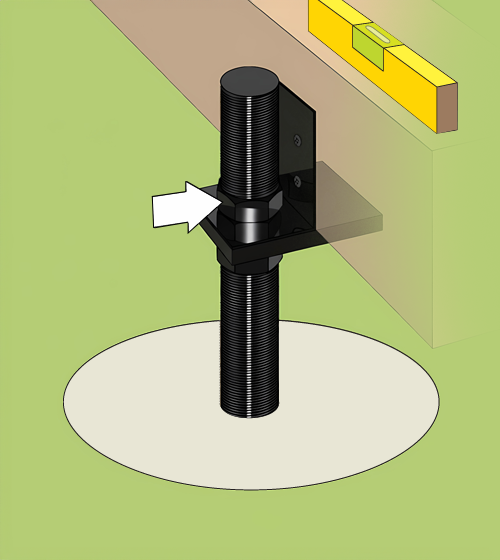

Once set, adjust each nut so that the frame is at the required height. Use a spirit level and adjust accordingly. Any excess height may be chopped from the top of the tube.

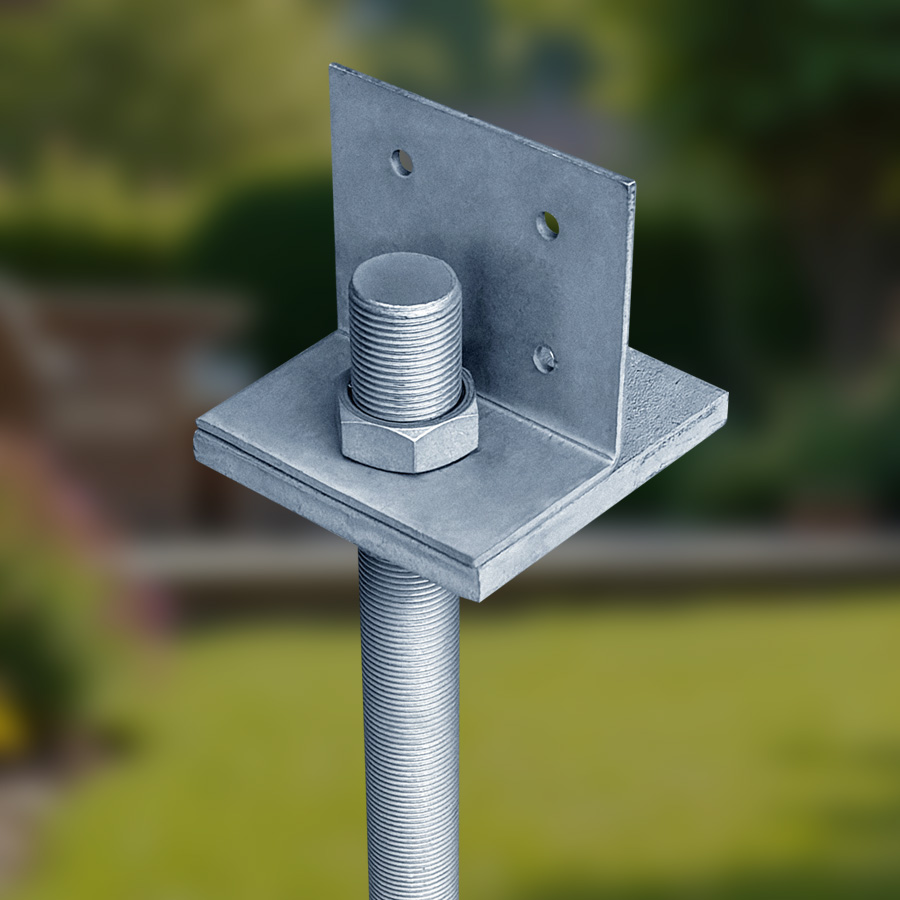

Why choose the Max Swift Leveller Max for your outdoor building?
As the name suggests, the Max Swift Leveller gives you the scope to adjust your foundations around a void of up to 500mm. The Max can be cut to any length on-site and needs to be concreted in. The Max works well in combination with the rest of the Swift Leveller range, providing solutions where the ground drops away, or you want to utilise ground that is unsuitable for other applications. The Max has a maximum loading capacity of 1000kg, so is generally used in combination. The Max is commonly used by professional installers, to provide foundation solutions in difficult installations.
Which Swift Leveller do I need?
There are four different products in the Swift Leveller range, all with the same aim – to keep your shed level. Choosing the right Swift Leveller is as simple as fitting it! The four Swift Levellers in the range are the Mini, Flexi, Max and the XL. Simply pick the best one for your project depending upon the size of the building that you are putting up, the ground that you are working with, and the extent of the void. Remember that all the Swift Levellers are designed to work together so that if you are installing a shed over a mix of ground surfaces, you can use a mix of different Swift Levellers.
